IoT Based Monitoring and Dashboarding Solution that Delivered Cost Savings of Over 25% on Electricity Consumption

The Need

A pioneer health care provider in India was looking for a Smart Building Management solution that enables them to manage utilities like water, power, and data requirements for the different sections in their facility effectively

Impacts Delivered
  • Reduced the time spent by the maintenance staff in responding to false alarms..
  • The system prevented the burden on the power rails by preventing multiple water pumps being turned on simultaneously.
  • Effective and simple dashboards enabled the managers to track important KPIs, spot trends and patterns in taking decisions effectively and efficiently
  • Continuous monitoring of generator parameters helped to increase the machine’s service life
  • Automatic switching between best internet service provider helped to improve efficiency of entire system by 40%
Our Solution
  • Developed a building management solution for managing the water, power and data requirement of the entire building.
  • Integrated this solution with the existing  HVAC system via  BACnet protocol providing state-of-the-art climate control for the entire building
  • Monitoring  the facility’s internet speed and switch service provider in case of performance degradation
  • Ensured that there is no shortage of water by monitoring flow rates and operating specific pump sets constituting to the respective section.
  • Generator’s fuel consumption and coolant level are monitored.
  • Quantitative measure the facility’s dependency on the installed generator set for auxiliary power requirements.
  • The whole facility’s internet speed is continuously.
  • Local and remote display of key parameters of the building, assisted the technicians and managers to analyse data with context, thereby reducing the time spent in responding to false alarms.
Tools &  Technologies
  • Delpheon IIoT Platform.
  • BACnet protocol for interface with HVAC systems.

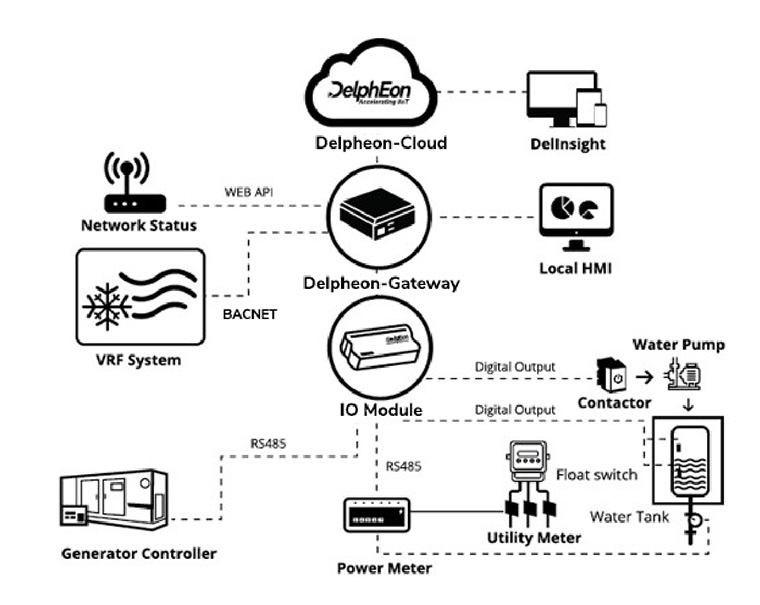

System Architecture Block diagram

System Architecture Block diagram
